R086-D(Aero Road)

Name: R086-D(Aero Road) | YISHUNBIKE
Brand: YISHUN
SKU: r086-d(aero-road)

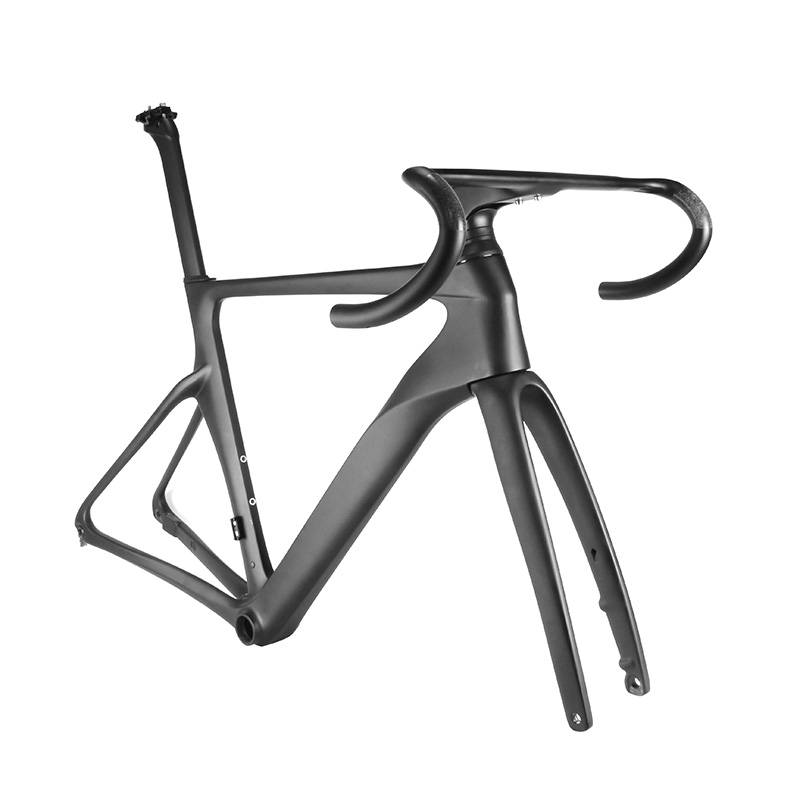

700C Carbon Aero Road DISC Brake Frameset

– Full internal cable routing

– Mechanical and Di2 groupset compatible

– High modulus carbon fiber

– Shimano flat mount 140mm disc rotor

– Dropout 12*100mm front&12*142mm rear

– Seatpost saddle rail round 7*7mm (default) and oval 7*9mm （optional）

WEIGHT 1120 g

SIZE 52cm

SKU: r086-d(aero-road) Categories: DISC BRAKE SERIES, FRAMES, ROAD / GRAVEL

TECHNICAL SPECIFICATIONS

Components	Frame / fork / integrated handlebar/ seatpost /seatclamp / headset / spacers / skewers
Frame Size	480/500/520/540/560/580mm
Weight	Frame 52cm: 1120+/-30g, fork 485+/-10g, SP: 235+/-10g, Handlebar: 400+/-10g ( 420*90mm)
Head Tube	1 1/2" – 1 1/2" (upper 52mm lower 52mm, FSA standard)
Fork	Full internal cable routing, 43mm offset
Handlebar	Full internal cable routing,drop 125mm, reach 81mm with DI2 hole Width: 380/400/420/440mm (C-C) Stem: 90/100/110/120/130mm
Seat Post	Specific 350mm length, 16.5mm offset
Bottom Bracket	Pressfit BB86.5
Max Chainring	53-39T / 50-34T
Max Tire	700*30C
Brake Type	Disc Brake
Rotor	Shimano Flat Mount 140mm or 160mm
Dropout O.L.D	Rear TA Φ12142mm, Fork TA Φ12100mm
Testing Standard	ISO4210
Warranty	2 Years

GEOMETRY

SIZE	CF	L	I	A	B	F	P	T	D	R	G	STACK	REACH	WB
480	460	515	134.7	75	72	570.9	408	100	70	43	368	502.8	380.8	968.3
500	480	535	143	74.5	73	577.6	408	110	70	43	368	515.5	392.3	975.1
520	500	550	150.3	74	73	588	408	120	70	43	368	528	399.7	985.6
540	520	565	158.2	73.5	73	597.9	408	130	70	43	368	534.6	406.8	995.6
560	540	580	166.9	73	73.5	603	408	140	70	43	368	545.8	413.1	1000.8
580	560	595	175.6	72.5	74	607.9	408	150	70	43	368	557	419.4	1005.7

TECHNOLOGIES

All our technologies are developed to achieve certain special application purposes of a product. Simply say, technology is born from riders' demands. Based on our different product designs, there are different purposes and guiding ideas behind them. Therefore, our engineering team has worked out proper and practical technologies for tooling, and manufacturing processes to make our products unique and stable.

MATERIAL DEVELOPMENT

STRUCTURE & LAY UP

MOULD TOOLING

PROCESS & PRODUCTION

Quality Control

Product quality is always originated from the raw materials to the complete production process.
The QC system functions as a solution to pick out inferior products and make sure all the goods to customers are flawless.
In our company's philosophy, the most economic solution is always to nip any potential risks in the bud.
So we set out and execute a strict QC system to shut down any chances of the inferiority complaints arising from the market relentlessly.

Learn More

Testings

Testing is another important part of a complete and mature factory. All technologies and ideas needed to be proved and supported by objective testing numbers.
Even during bulk production, testings also play the role of an alarm and work as a supplement to the QC system.
So we always insist on two testing systems to support our engineering team and production team.

Learn More

CUSTOMER CARE

WARRANTY

In our factory, there are actually already four systems to make sure the quality and stablity of our product. These systems include engineering, testing, QC, and production. However, we still can't claim that all our products will never faillure. When the products in daily usage, there are always so many different potential risks to cause function failures. So we try to provide different warranty policies to back our customers.

DECALS & PAINTING SOLUTIONS

We developed three types of different sticker solutions to meet different demands.
The key idea is about beauty, convenience, efficiency, and costs.
Each solution has its own characteristics.

SUPPORTS

A good cooperation efficiency is always born from complete and transparent information.
Here, we try to explain our order terms, payment illustration, and our delivery&shipment ability.
With this extra information, we wish to help customers make good decisions efficiently

ORDER TERMS / PAYMENT / SHIPMENT
