Rims / Road / RS Series

RS Series Carbon Fiber Road Rims

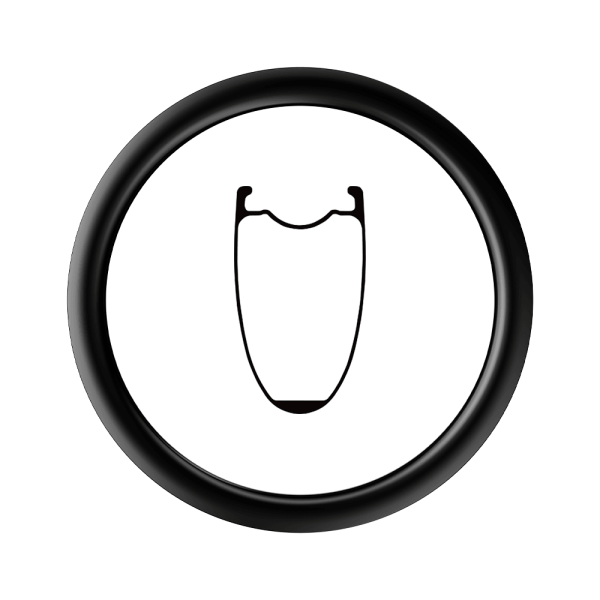

Where equilibrium breeds excellence. The RS Series’ Road Symmetric Pro Profile elevates concentric design to an art form, delivering uncompromised stability for riders who value controlled precision.

The RSL (21mm) and RSK (23mm) platforms morph seamlessly from razor-thin speed machines to gravel-ready conquerors – all through a single wheelset ecosystem. Five wind-sculpted profiles (25-60mm) and three progressive layup architectures (V1-V3) empower brands to craft wheel systems that mirror their riders’ personas: whether prioritizing vibration-damping resilience or weight-optimized responsiveness.

Paired with our mini-hook guardian system and universal disc brake compatibility, this is symmetry engineered to disappear beneath the ride. The silent maestro of every revolution.

SPECIFICATIONS

Verison: Each RS rim variant is labeled with a distinct version (V2, V3, etc.), indicating its relative weight and cost characteristics for simplified identification.
Customization:
Finish Options: Our RS rims feature a standard UD matte finish, ensuring a sleek and sophisticated look. Custom finishes are available upon request to add a personalized touch to your wheels.
Hole Counts: Disc brake rims are equipped with a standard 24H configuration for optimal durability and strength.

RSK - 23mm I.W | Disc Only | Clincher Tubeless Ready | Mini-Hook

Profile	I.W.	O.W.	ERD	Model	Version	Net Weight	MOQ	Delivery
38mm	23mm	28.3/30.5mm	569	RSK38C	V2 \| V3	380g \| 350g	V2 ≥ 10 V3 ≥ 4	TWO WEEKS
45mm	23mm	28.3/30.5mm	555	RSK45C	V2 \| V3	400g \| 360g	V2 ≥ 10 V3 ≥ 4	TWO WEEKS
50mm	23mm	28.3/30.5mm	545	RSK50C	V2 \| V3	420g \| 380g	V2 ≥ 10 V3 ≥ 4	TWO WEEKS
60mm	23mm	28.3/30.5mm	525	RSK60C	V2 \| V3	450g \| 410g	V2 ≥ 10 V3 ≥ 4	TWO WEEKS

RSL - 21mm I.W. | Disc Only | Clincher Tubeless Ready | Mini-Hook

Profile	I.W.	O.W.	ERD	Model	Version	Net Weight	MOQ (pcs)	Delivery
25 mm	21 mm	28 mm	595	RSL25C	V2	370g	≥ 10	2 WEEKS
35 mm	21 mm	28.3/29.5 mm	575	RSL35C	V2	380g	≥ 10	2 WEEKS
38 mm	21 mm	27.5/28.3 mm	569	RSL38C	V2	390g	≥ 10	2 WEEKS
45 mm	21 mm	27.5/28.3 mm	555	RSL45C	V2	410g	≥ 10	2 WEEKS
50 mm	21 mm	27.3/28.6 mm	545	RSL50C	V2	420g	≥ 10	2 WEEKS

RSK - 23mm I.W | Disc Only | Clincher Tubeless Ready | Mini-Hook

Model	RSK38C	RSK45C	RSK50C	RSK60C
Profile	38mm	45mm	50mm	60mm
I.W.	23mm	23mm	23mm	23mm
O.W.	28.3/30.5mm	28.3/30.5mm	28.3/30.5mm	28.3/30.5mm
ERD	569	555	545	525
Version	V2 \| V3	V2 \| V3	V2 \| V3	V2 \| V3
Net Weight	V2 380g	V2 400g	V2 420g	V2 450g
Net Weight	V3 350g	V3 360g	V3 380g	V3 410g
MOQ (pcs)	V2 ≥ 10 V3 ≥ 4	V2 ≥ 10 V3 ≥ 4	V2 ≥ 10 V3 ≥ 4	V2 ≥ 10 V3 ≥ 4
Delivery	2 Weeks	2 Weeks	2 Weeks	2 Weeks

RSL - 21mm I.W. | Disc Only | Clincher Tubeless Ready | Mini-Hook

Model	RSL25C	RSL35C	RSL38C	RSL45C	RSL50C
Profile	25 mm	35 mm	38 mm	45 mm	50 mm
I.W.	21 mm	21 mm	21 mm	21 mm	21 mm
O.W.	28 mm	28.3/29.5 mm	27.5/28.3 mm	27.5/28.3 mm	27.3/28.6 mm
ERD	595	575	569	555	545
Version	V2	V2	V2	V2	V2
Net Weight	370g	380g	390g	390g	420g
MOQ (pcs)	≥ 10	≥ 10	≥ 10	≥ 10	≥ 10
Delivery	2 Weeks	2 Weeks	2 Weeks	2 Weeks	2 Weeks
