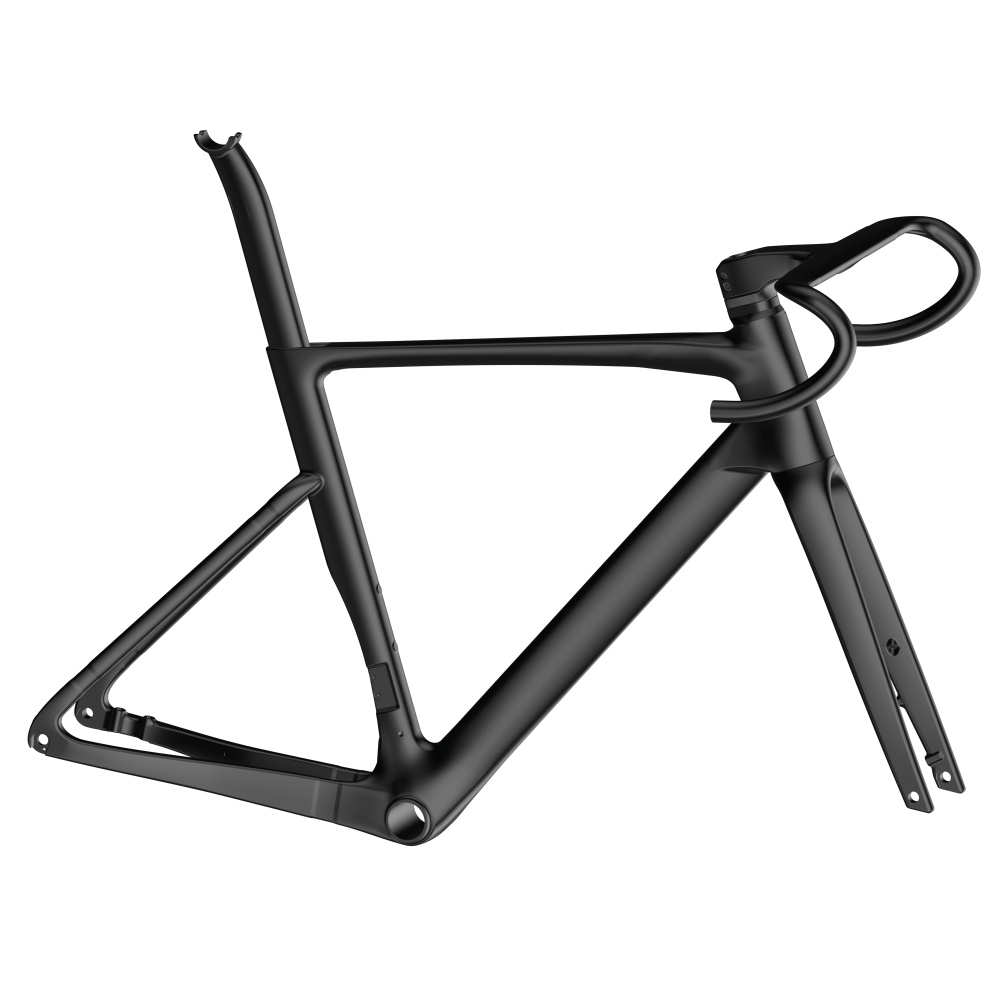

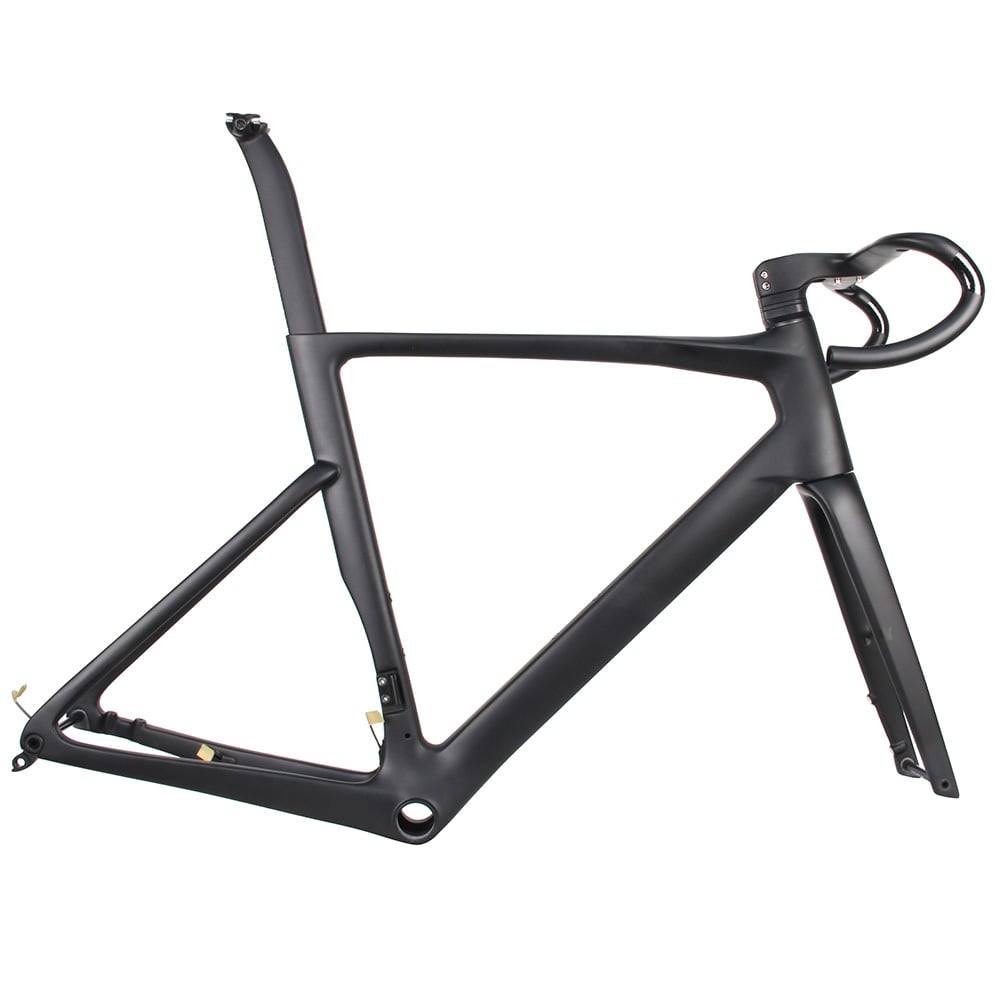

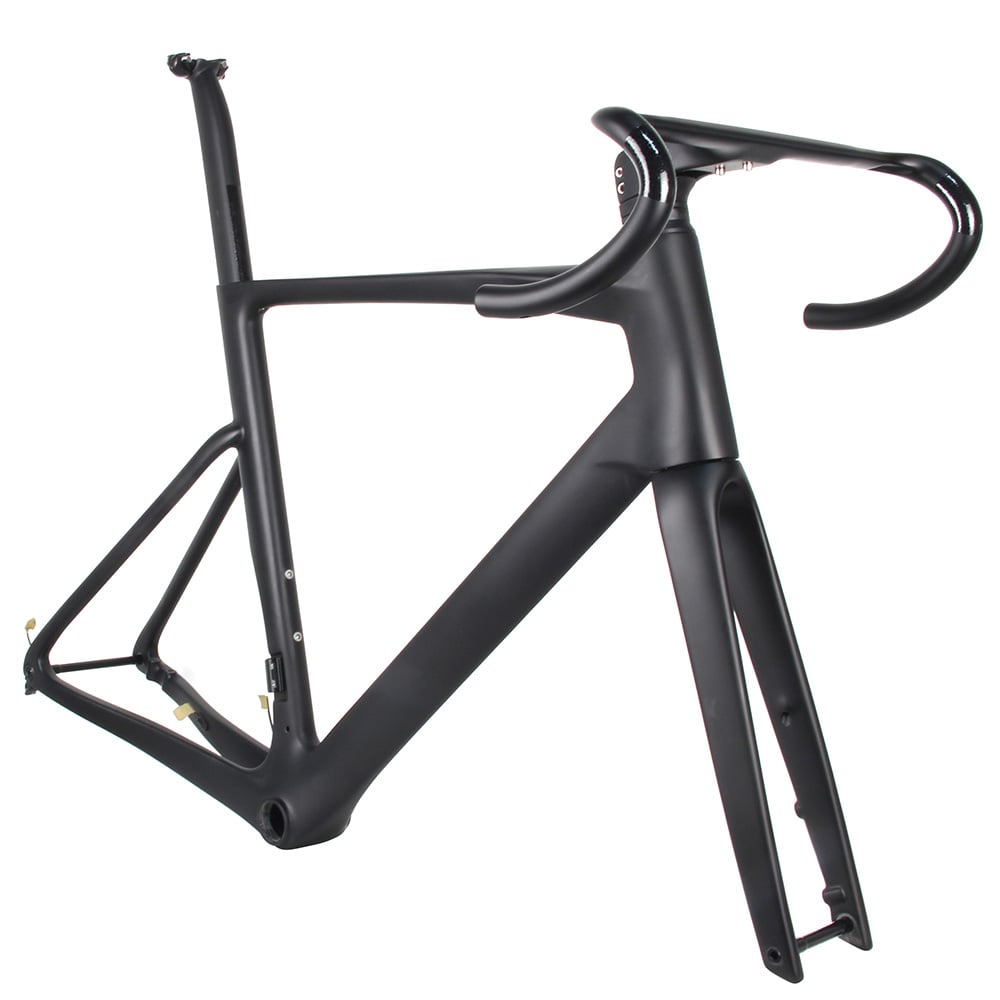

700C Full Carbon Road Performance Frameset
| Frame Model | R068-D |
| Material | Full Carbon Fiber |
| Sizes (cm) | 47, 50, 53, 56, 59 |
| Routing System | Integrated Internal Cable |
| Seattube Diameter | Specified Aero |
| Headset | 1 1/2" - 1 1/2″ (suitable for FSA ACR/SMR system) |

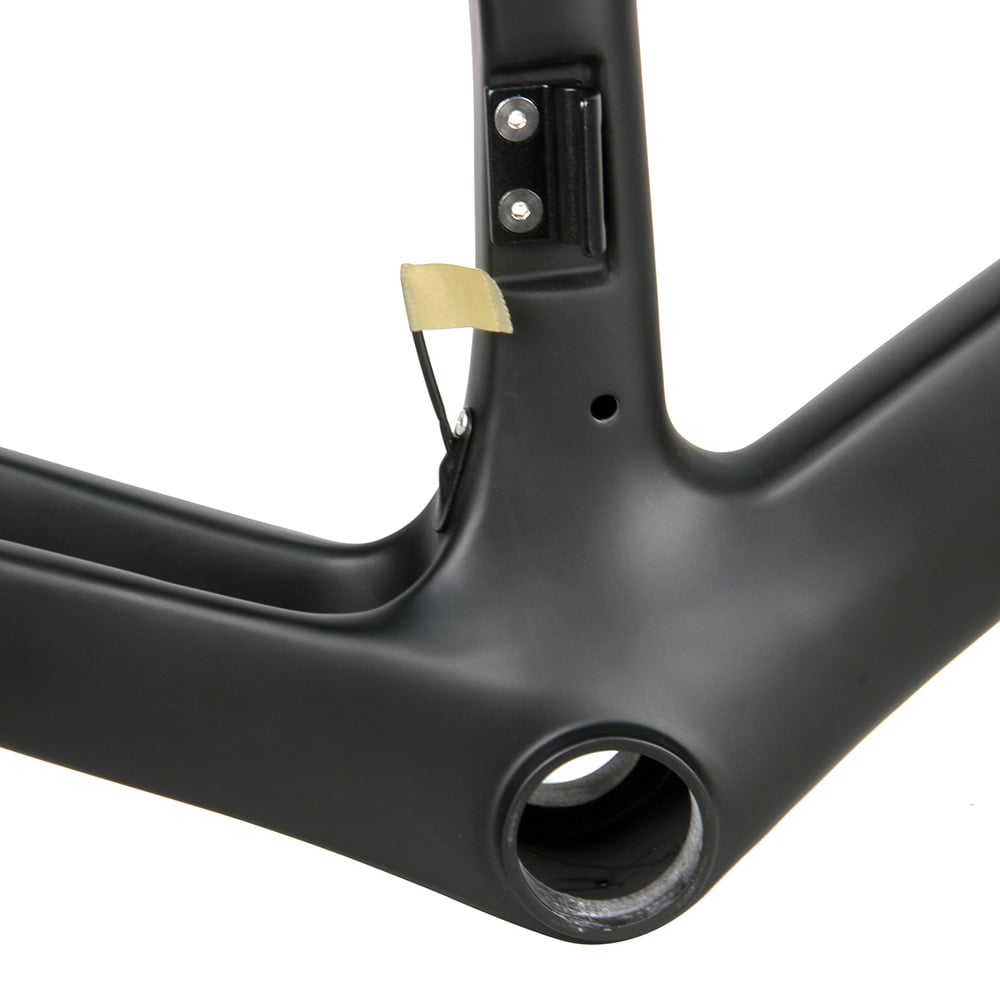

| BB Type | Pressfit BB86.5 |
| Brake Type | Disc Brake |
| Brake Mount | Flat Mount |
| Rotor Compatible | 140mm/160mm |
| Max Chainring | 55-42T |
| Maximum Tire Clearance | 700*30C |
| Dropout | 12x142mm |
| Weight (53cm/M) | 1140g (Tolerance ±5%) |
| Max Rider's Weight | 130kg |
| Compability | Cable stop on frame is for Mechanic sram groupset |

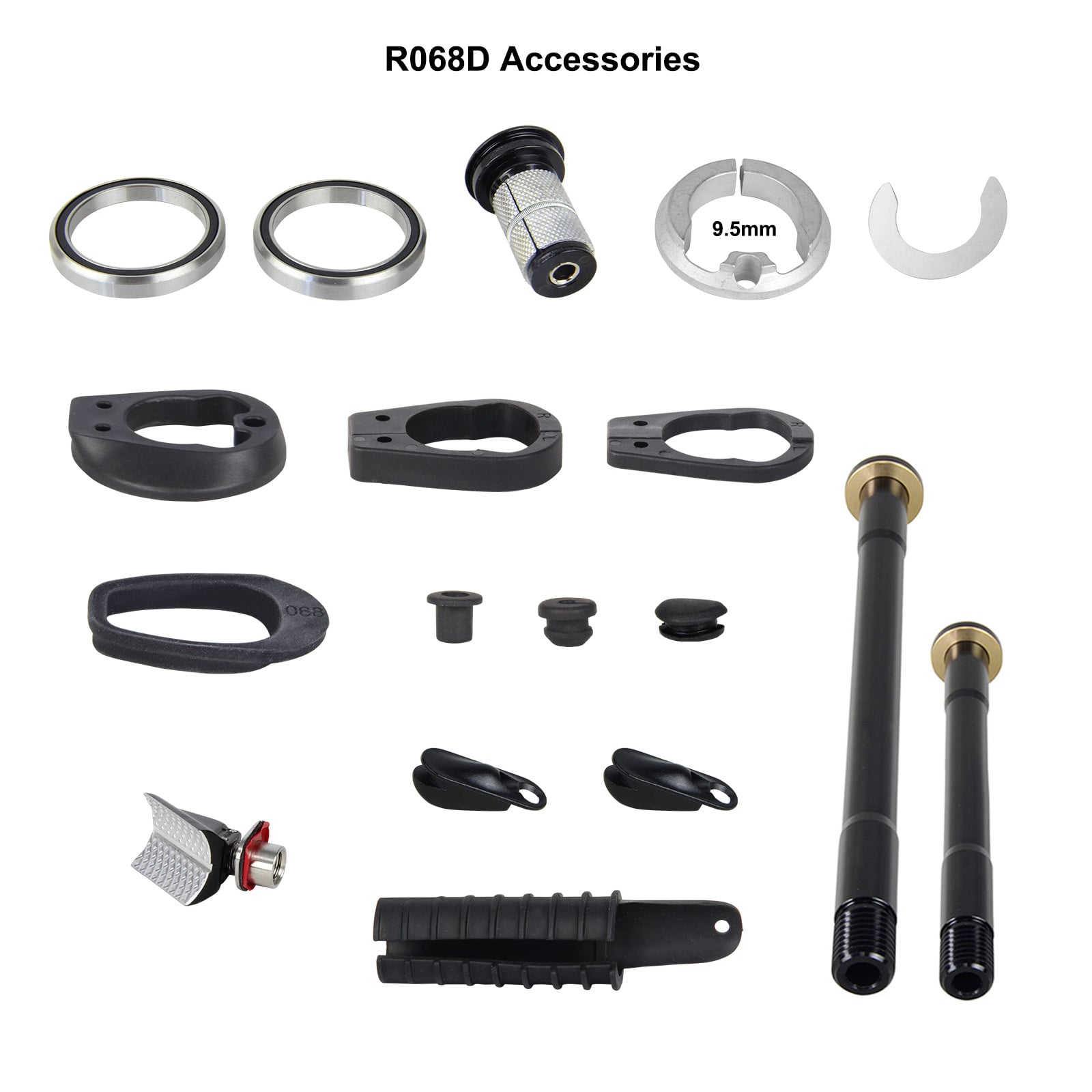

| Included Accessories | 1 Aluminium hanger |
| 1 Wedge-shape aluminium seatpost clamp | |
| 1 Headset (52/52mm top&down bearings, compression plug, compression lock ring, headset top cover for ACR system ) |
|
| 2 Cable stops and 3 DI2 hole rubbers (compatible for 1 for Mechanic shimano groupset,DI2 and wireless DI2 groupset) |
|
| 1 Rear Axle: 12×142 (Total Length:169mm, M12*P:1.5*L15,40g) | |
| 1 SHIMANO Di2 Internal Battery Rubber holder | |
| 1 Seatpost waterproof rubber |

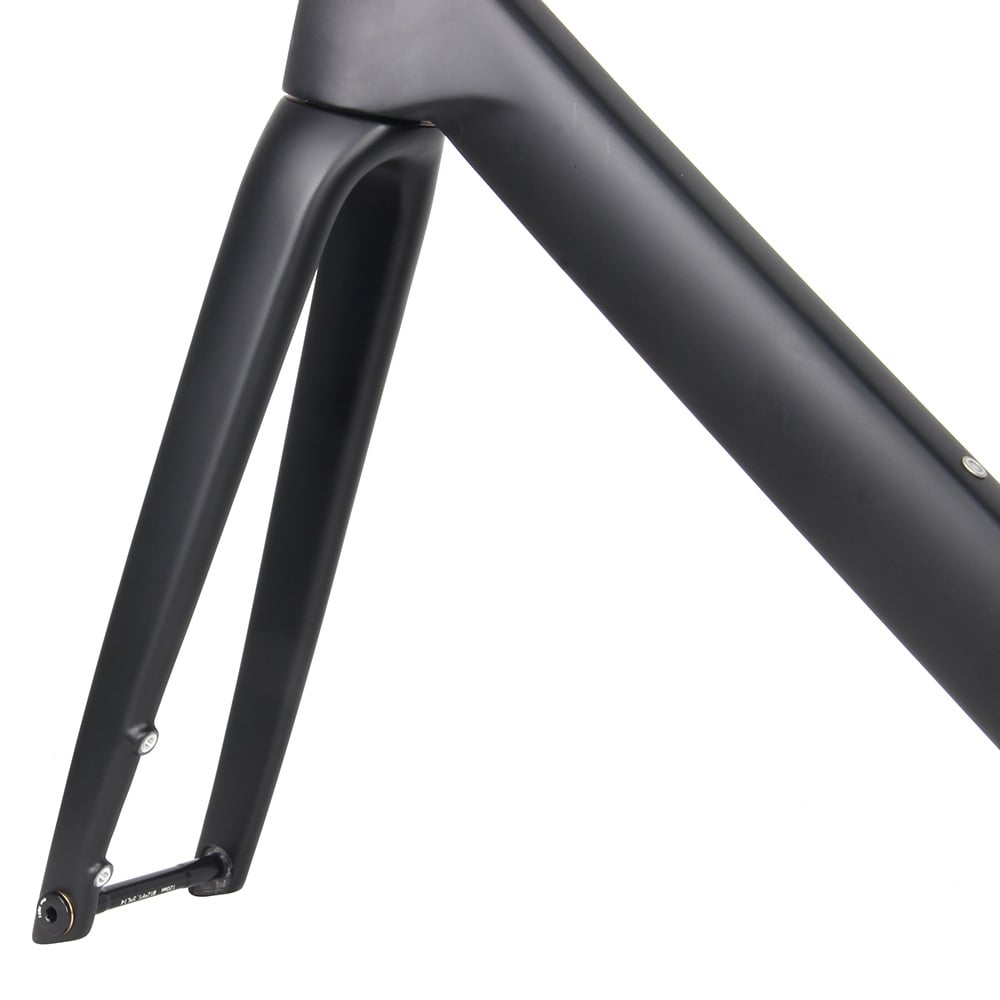

| Fork Model | FK-R068-D |
| Material | Full Carbon Fiber |
| Routing System | Integrated Internal Cable |
| Axle to crown | 368mm |
| Steerer Length | 300mm |
| Steerer ID | 23.6mm |
| Steerer OD | 28.6mm |
| Crown race ID | 39.8mm |
| Offset/Rake | 45mm |
| Dropout | 12x100mm |
| Weight Version | 475g (Tolerance ±5%) |
| Included Accessories | 1 front axle: 12×100 (Total Length: 120mm, M12*P:1.5*L14, 30g) |

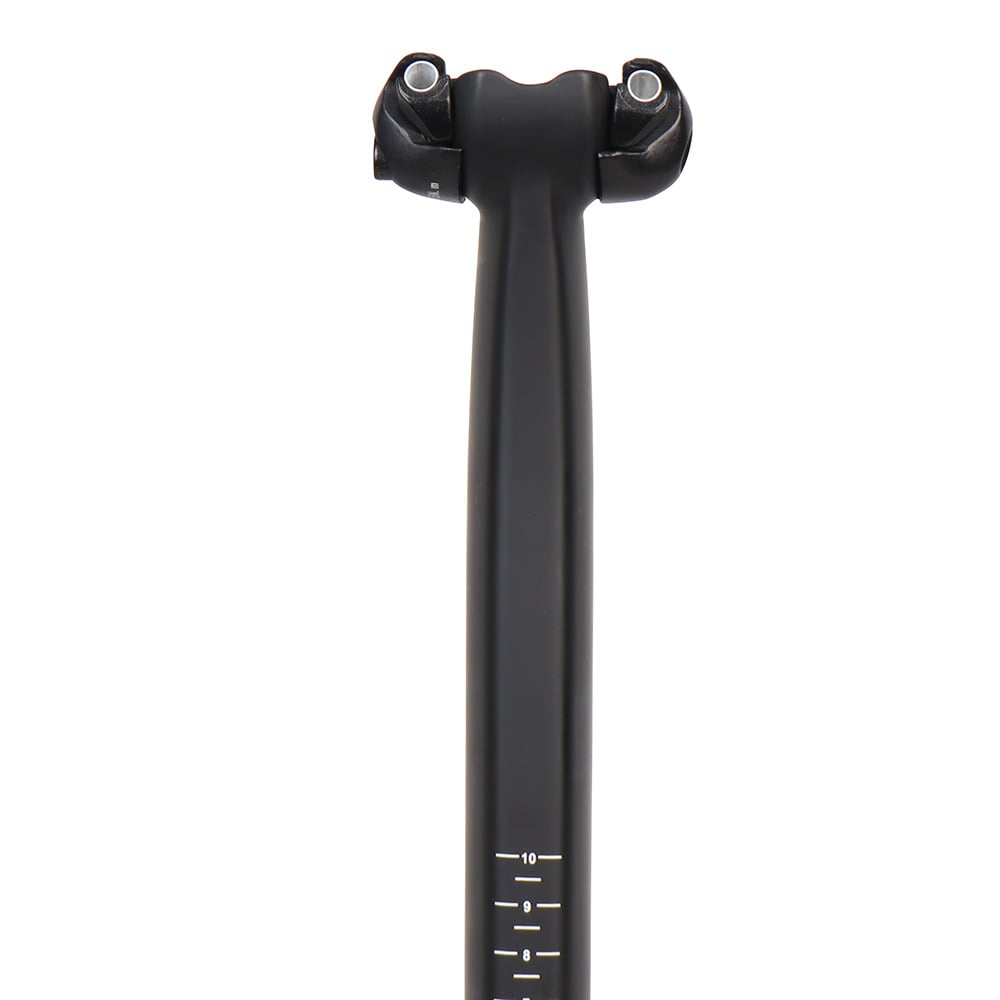

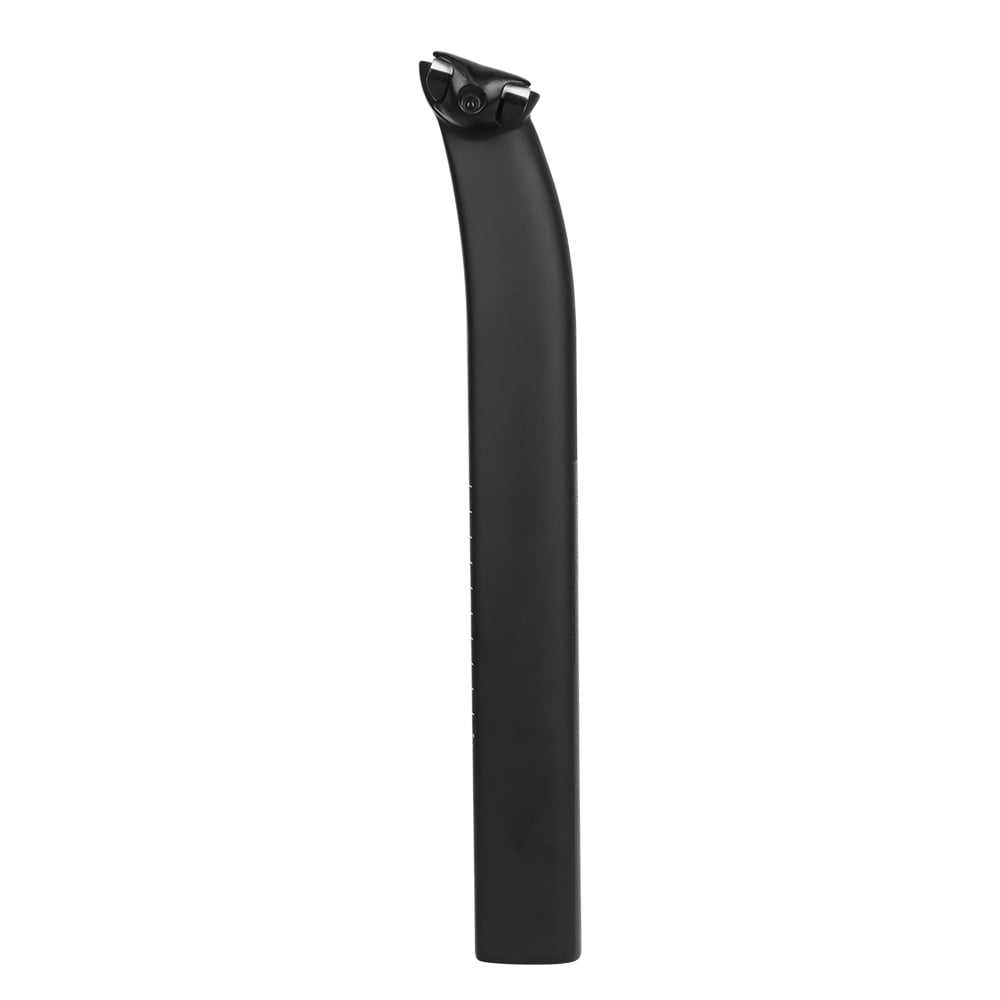

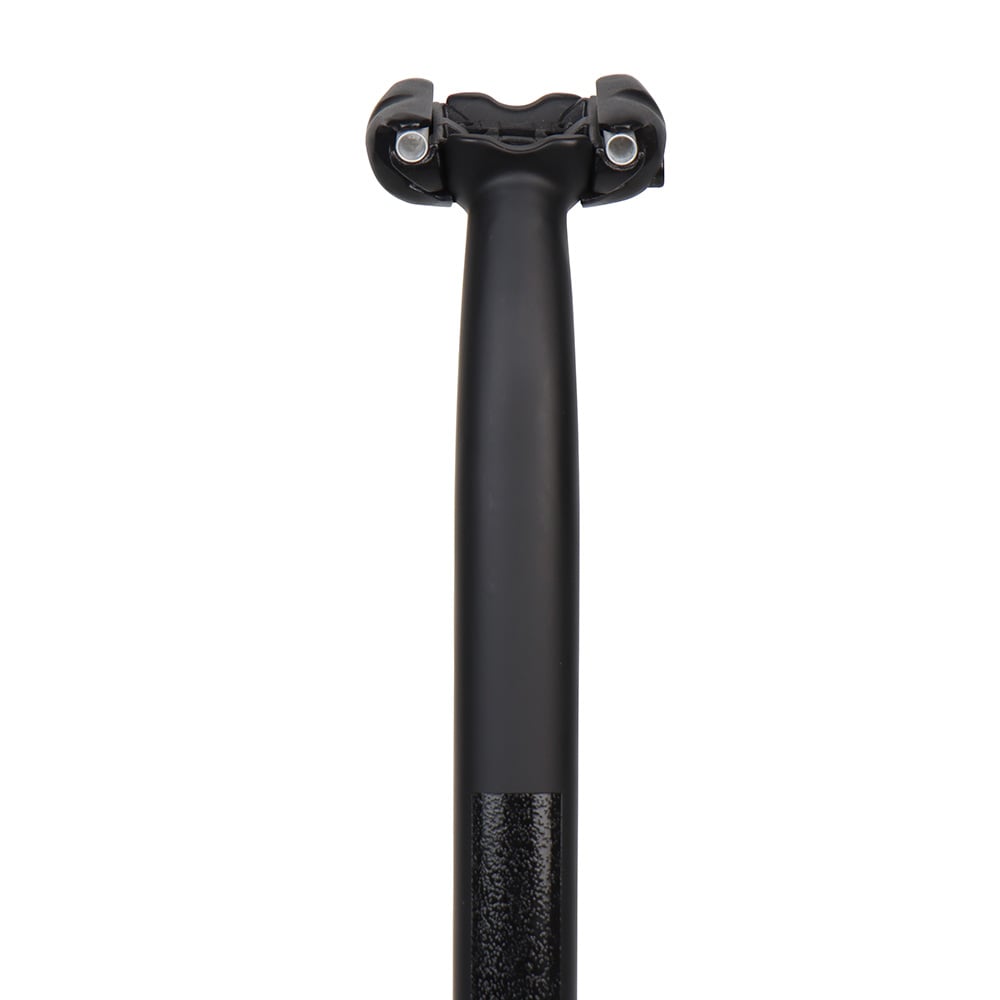

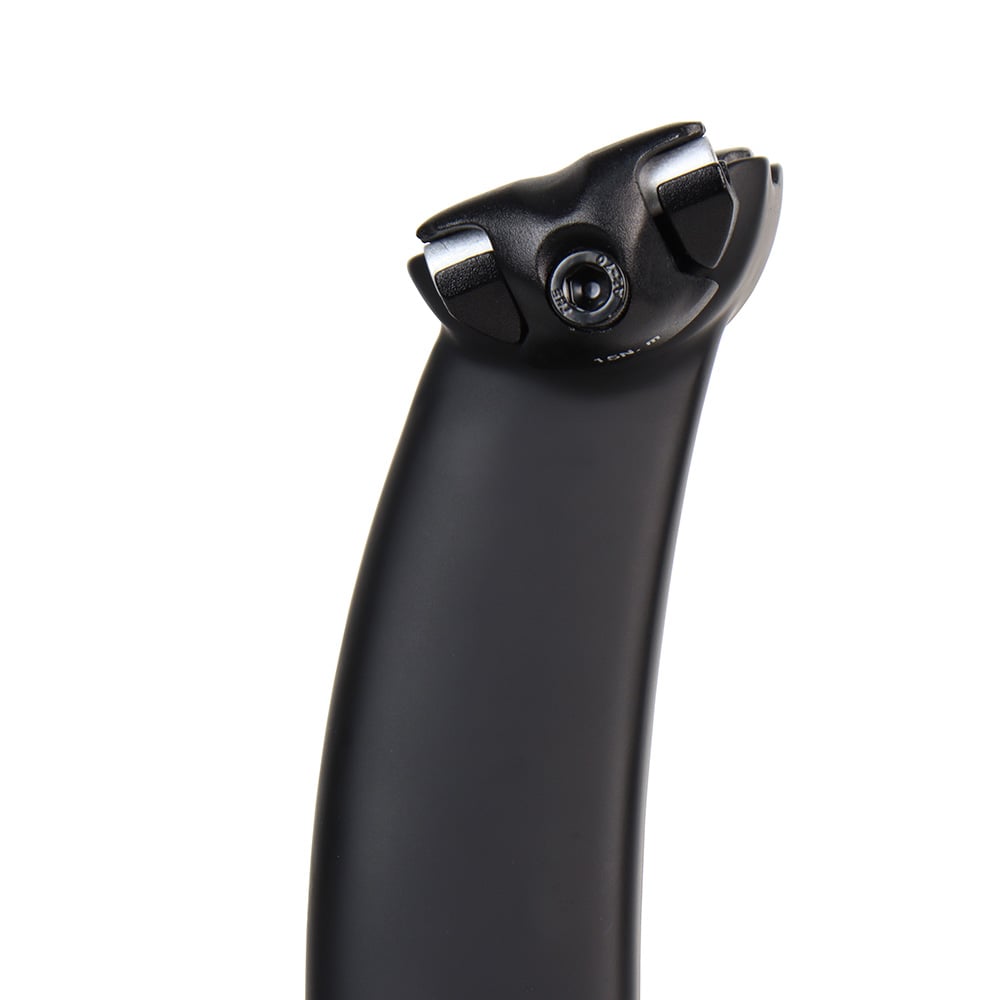

| Model | SP-R068-D-1 (Default) |
| Material | UD Full Carbon Fiber |
| Diameter OD | Specified |
| Length | 350mm |
| Setback | 15mm |
| Saddle Clamp | Round 7*7mm saddle rail (Default) Oval 7*9mm saddle rail (Available) |
| Clamping | 1-bolt forged aluminium clamp |
| Weight | 165g (Tolerance ±5%) |
| Rider Weight Limit | None |
| Finish | UD Black Matt |
| Compability | Suitble for R068D only |

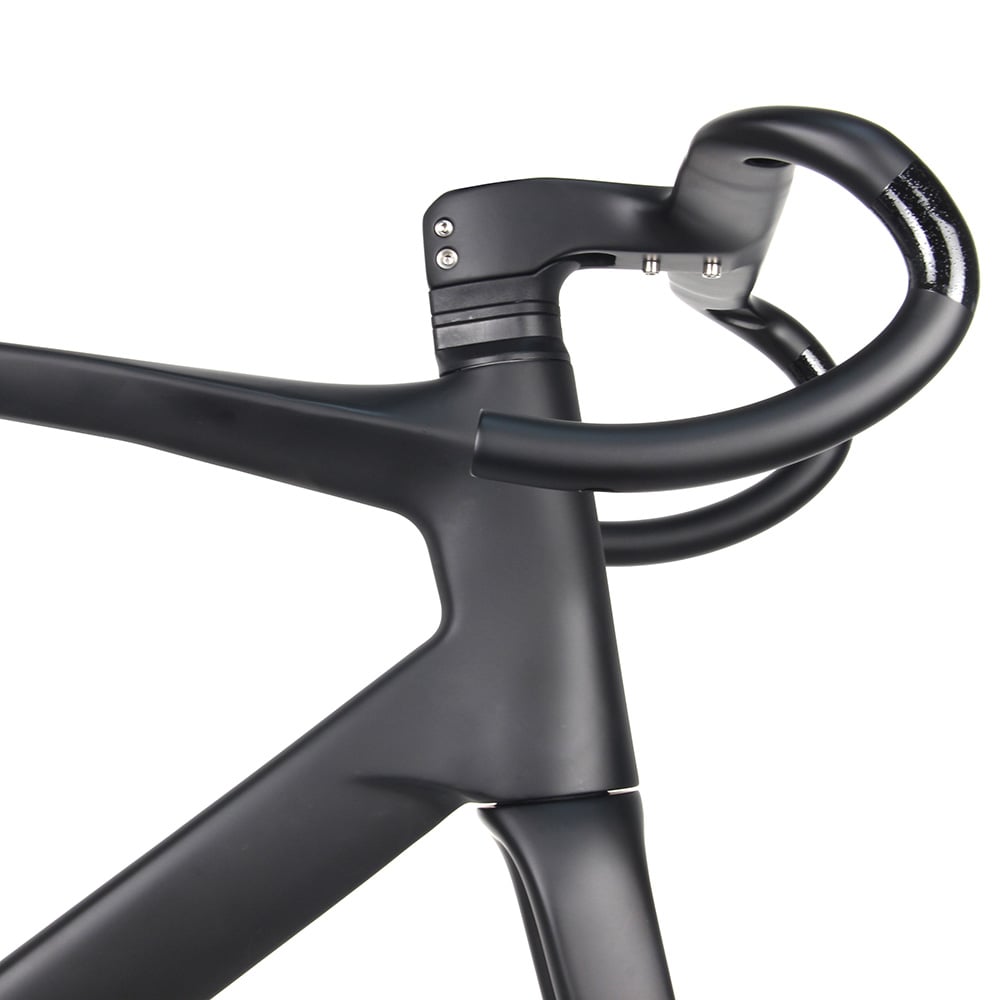

| Material | Handlebar (Full carbon fiber) Screws (Stainless steel, silver color) |
|---|---|
| Handlebar Width | 38cm, 40cm, 42cm, 44cm (center to center) |
| Stem Length | 90, 100, 110, 120, 130mm |
| Steerer Tube Diameter | 28.6mm |
| Stem Angle | -10° |
| Reach | 81 mm |
| Drop | 125 mm |
| Flare | 5° |
| Weight (420*100) | 400g (Tolerance 5% g) |
| Finish | UD black matt (default finish) (glossy or customized branding acceptable) |
| Bike Computer Mount Compatible | Garmin/Bryton/Wahoo (others most market bike computers) |
| Included Accessories | Cable cover, headset spacers 5/10mm |

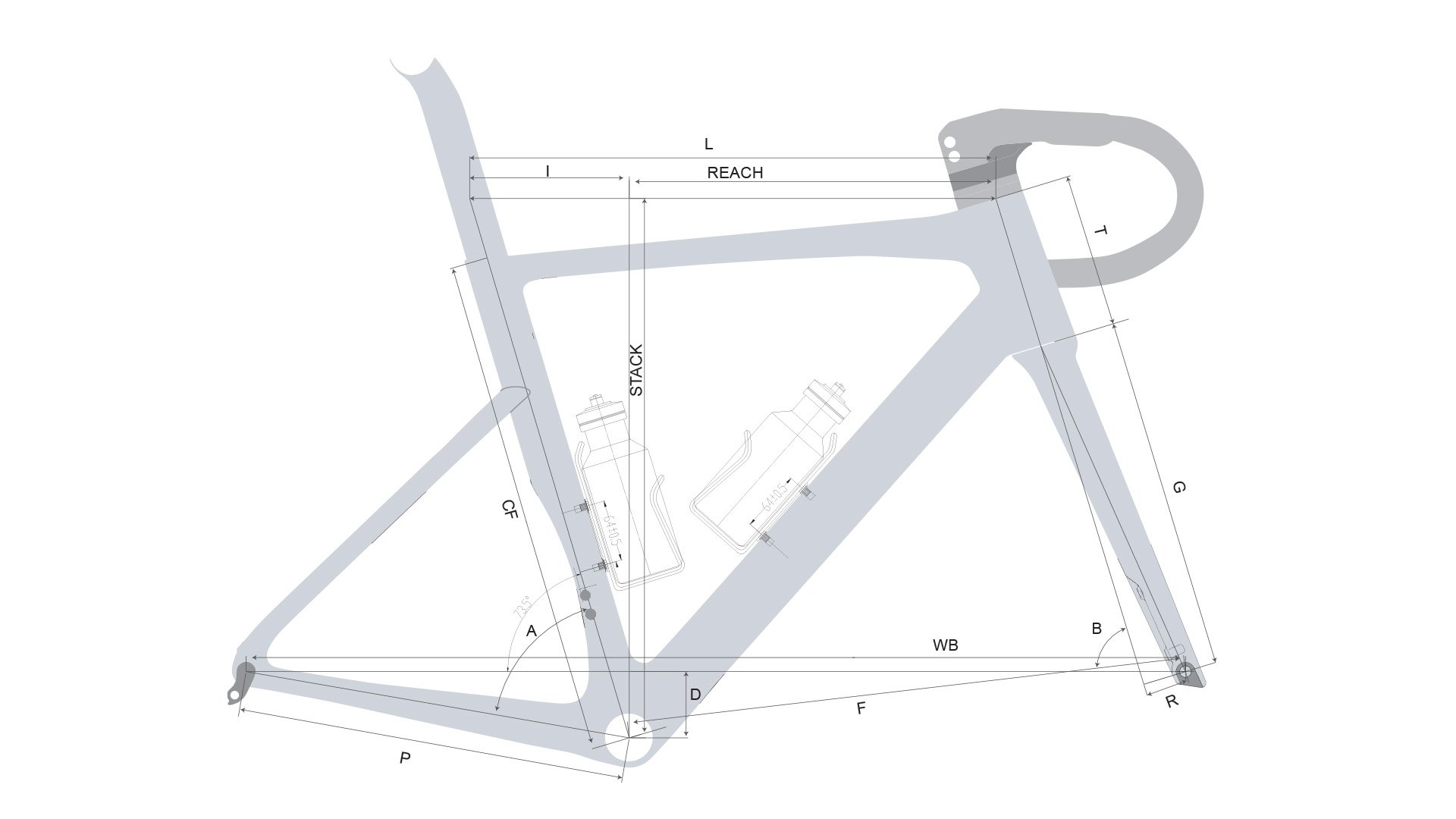

* All units are in millimeters or degrees
| Size | 470/XS | 500/S | 530/M | 560/L | 590/XL | |
|---|---|---|---|---|---|---|
| CF | Seat tube | 460 | 490 | 520 | 550 | 580 |
| L | Effective top tube | 514.1 | 535.6 | 548 | 565.1 | 587.1 |
| I | Stack Height | 138.9 | 155.1 | 166.2 | 175.3 | 186.9 |
| A | Seat tube angle | 75° | 74° | 73.5° | 73.25° | 73° |
| B | Head tube angle | 71.5° | 72.5° | 73° | 73.5° | 73.5° |
| F | BB to Front Wheel | 577.2 | 580.6 | 583.4 | 592.9 | 611.7 |
| P | Chainstay length | 405 | 405 | 405 | 405 | 405 |
| T | Head tube length | 120 | 140 | 160 | 180 | 210 |
| D | BB drop | 69 | 69 | 69 | 69 | 69 |
| R | Trail | 45 | 45 | 45 | 45 | 45 |
| G | Fork length | 368 | 368 | 368 | 368 | 368 |
| STACK | Stack | 518.5 | 540.9 | 561.8 | 582.6 | 611.3 |
| REACH | Reach | 375.2 | 380.5 | 381.8 | 389.8 | 400.2 |
| WB | Wheelbase | 972.1 | 975.5 | 978.4 | 987.8 | 1007.4 |
