Disc Brake
XC | TR | EN
Hookless
Carbon | Steel Spoke
20/23mm Profile
Disc Brake
XC | TR
Hookless
Steel Spoke
21 | 24.5 | 25mm Profile
WRSL50C ENT
Disc Brake
21mm I.W.
Rim Version V1
Hub with Pawl-System
Steel Spoke
WRBL50C ENT
Disc Brake
23mm I.W.
Rim Version V1
Hub with Pawl-System
Steel Spoke
WGRL30S ENT
Disc Brake
24mm I.W.
Rim Version V1
Hub with Pawl-System
Steel Spoke
OEM/ODM Wheels feature a standard UD finish with high MOQ ≥ 100 pair required.
Asymmetric Design
Disc Brake
Mini-Hook | Hookless
25mm I.W.
30 | 40 | 50 mm Profile
Symmetric Design
Disc Brake
Hookless
28mm I.W.
40 | 50 mm Profile
Bridge Design
Disc Brake
Hookless
25 | 28 | 31 | 32 I.W.
20/23 mm Profile
Asymmetric Design
Disc Brake
Hookless
25 | 28 | 31 | 32 | 35 I.W.
21 | 24.5 | 25 mm Profile
Symmetric Design
Disc Brake
Hookless
32mm I.W.
31 mm Profile
Fat Tire
Disc Brake
Hookless
60 | 70 | 80 | 83 I.W.
20 | 22 | 40 mm Profile
e-Gravel
Disc Brake
HookLess
25mm I.W.
40 mm Profile
e-MTB
Disc Brake
Hookless
32mm I.W.
31 mm Profile
Size 16''
ETRTO 349
19mm I.W.
30 mm Profile
Size 20''
ETRTO 406
22 | 23 | 31 mm I.W.
20 | 23 | 30 mm Profile
Size 20''
ETRTO 451
18 mm I.W.
26 mm Profile
Size 24''
ETRTO 507
23 mm I.W.
21 mm Profile
RBL50C Basic
Wave Design
Disc Brake
Mini-Hook
21mm I.W.
50mm Profile
RSL50C Basic
Symmetric Design
Disc Brake
Mini-Hook
21mm I.W.
50mm Profile
RSL45C Basic
Symmetric Design
Disc Brake
Mini-Hook
21mm I.W.
45mm Profile
RSL38C Basic
Symmetric Design
Disc Brake
Mini-Hook
21mm I.W.
38mm Profile
Our Basic Rims feature a standard UD matte finish with high MOQ ≥10 pcs required.
Pawl System
Steel Spoke
Ratchet System
Steel Spoke
Ratchet System
Carbon Spoke
Rims / Road / Aero

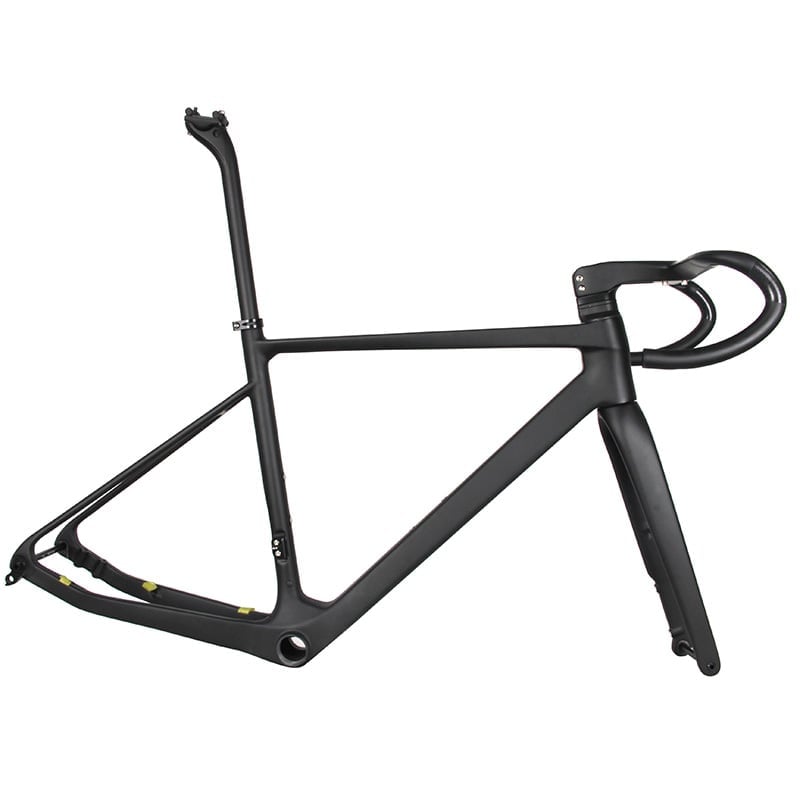

700C Carbon Aero Road DISC Brake Frameset
- Full internal cable routing frame with integrated handlebar
- Mechanical and Di2 groupset compatible
- High modulus carbon fiber
- Shimano flat mount 140mm disc rotor
- Dropout 12*100mm front&12*142mm rear
| Model | R096D 700C Endurance Road Carbon Frameset |
| Including | Frame/fork/integrated handlebar/seatpost/seatclamp/headset /spacers/skewers |
| Frame Size | 470/500/530/550/580mm |
| Weight | Frame 53cm: 1020+/-30g, Fork: 440+/-10g, Seatpost: 200+/-10g, Handlebar: 400+/-10g ( 420*90mm), |
| Head Tube | 1 1/2" – 1 1/2" (upper 52mm lower 52mm, FSA standard) |
| Fork | Full internal cable routing, 45mm offset |
| Handlebar | Full internal cable routing, drop 125mm, reach 81mm with DI2 hole Width: 380/400/420/440mm (C-C) Stem: 90/100/110/120/130mm |
| Seat Post | Round Φ27.2mm, 350mm length, 25mm offset (Standard) Round Φ27.2mm, 400mm length, 0 mm offset (Optional) |
| Bottom Bracket | Pressfit BB86.5 |
| Max Chainring | 55-42T |
| Max Tire | 700*30C |
| Brake Type | Disc Brake |
| Rotor | Shimano Flat Mount 140mm or 160mm |
| Dropout O.L.D | Rear TA Φ12*142mm, Fork TA Φ12*100mm |
| Testing Standard | ISO4210 |
| Warranty | 2 Years |
AquaArch™ Technology
Introducing AquaArch™ Technology, a revolutionary advancement in carbon rim design. Inspired by the graceful form of water droplets, our patented AquaArch™ profile combines structural reinforcement and spoke lacing guidance into one elegant solution.
At the heart of this innovation lies the meticulous design of the nipple hole area. The AquaArch™ profile provides unparalleled reinforcement, significantly enhancing the strength and durability of our carbon rims. By precisely distributing material in this critical zone, we achieve an optimal balance of structural integrity and weight reduction, resulting in lighter, more efficient rims that excel in demanding riding conditions.
Moreover, the distinctive shape of the AquaArch™ serves as a natural guide for spoke lacing direction. The tapered end of the drop intuitively indicates the ideal path for spoke placement, simplifying the wheel-building process and ensuring precise and balanced spoke tension. This streamlined approach guarantees optimal wheel performance and longevity.
Experience the seamless integration of functionality and aesthetics with AquaArch™ Technology. Discover the power of water-inspired design, as it unleashes a new level of strength, efficiency, and reliability in your cycling adventures. Elevate your riding experience and embrace the future of carbon rim technology.
Asymmetric Profile Design
Unleash Performance For Carbon Rims
Breaking away from traditional symmetrical configurations, the asymmetric profile design delivers a host of benefits that elevate your riding experience.
By strategically redistributing forces and optimizing spoke tension balance, asymmetric profiles enhance strength, durability, and power transfer. They offer improved lateral stiffness for precise handling and acceleration, along with compatibility for wider tires, unlocking enhanced traction and comfort.
With meticulous attention to wheel symmetry, these rims ensure stability and a seamless ride. Embrace the asymmetric profile design and experience unparalleled performance on any terrain. Unleash your full potential with our meticulously engineered carbon rims, crafted to push boundaries and redefine what's possible in cycling.
GraphiMax™ Advanced Composite
Unleashing Performance in MTB Rim Technology
Push the boundaries of your mountain biking experience with our GraphiMax™ Advanced Composite MTB rims. Through a revolutionary combination of high modulus carbon fiber and nano-graphene reinforced epoxy, we have created a game-changing material technology that delivers unrivaled performance on the trails.
Harnessing the strength and stiffness of high modulus carbon fiber, our MTB rims provide exceptional power transfer, precise handling, and unmatched responsiveness. This lightweight construction allows riders to conquer technical descents, navigate tight corners, and tackle challenging terrain with agility and confidence.
The integration of nano-graphene particles into the epoxy resin takes our rims to the next level. This advanced reinforcement enhances impact resistance, extending the durability and longevity of our rims in the face of harsh trail conditions. Riders can confidently push their limits, knowing that our MTB rims are engineered to withstand the demanding forces encountered during aggressive trail riding.
Not only does the nano-graphene reinforcement enhance strength, but it also improves heat dissipation properties. This prevents overheating during intense descents, ensuring consistent performance and reliability on long rides.
With our GraphiMax™ Advanced Composite rims, riders can unleash their full potential, pushing boundaries and experiencing the exhilaration of conquering any terrain.
Elevate your mountain biking performance with our carbon rims featuring high modulus carbon fiber and nano-graphene reinforced epoxy. Experience the power, strength, and durability that redefine the possibilities of MTB rim technology.
ThermaCarbon™ Pro
Redefining Rim Brake Performance with High Modulus Carbon Fiber and Heat-Resistant Epoxy
Elevate your rim brake experience with our ThermaCarbon™ Pro rims, engineered to deliver unrivaled performance and reliability. Meticulously crafted using high modulus carbon fiber and heat-resistant epoxy, these rims redefine the boundaries of rim brake performance.
At the core of our design philosophy lies the exceptional strength-to-weight ratio of high modulus carbon fiber. This advanced material ensures optimal power transfer, transforming every pedal stroke into forward momentum. The lightweight construction of our rims enhances responsiveness and maneuverability, empowering riders to effortlessly navigate challenging terrains.
To complement the high modulus carbon fiber, we employ a heat-resistant epoxy resin that surpasses industry standards. This specialized resin formulation enables our rims to withstand the extreme temperatures generated during heavy braking. As a result, riders can push their limits with confidence, knowing that their rims will maintain their structural integrity and performance even under the most demanding braking conditions.
With the ThermaCarbon™ Pro rims, you can experience the perfect balance of weight, strength, and heat resistance. Embrace the next level of rim brake performance and unleash your potential on the road. Whether you're sprinting, climbing, or descending, our rims are engineered to deliver uncompromising performance, empowering you to conquer new challenges with every ride.
Advantages of Hookless Bead Design in Carbon Rims
Weight Reduction, Impact Resistance, and Enhanced Performance
Hookless bead design has revolutionized the world of carbon rims, offering a host of benefits for riders seeking high-performance wheelsets. Unlike traditional rims with a hooked shape, hookless bead rims feature a straight sidewall that eliminates the need for a bead hook. This innovative design brings numerous advantages, including weight reduction, improved impact resistance, and enhanced performance characteristics.
One key advantage of hookless bead rims is their ability to shed unnecessary weight. By removing the bead hook, these rims can achieve a lighter overall weight, contributing to improved acceleration, agility, and maneuverability on the trail or road. This weight reduction is particularly beneficial for riders looking to optimize their climbing performance and overall efficiency.
Additionally, the absence of a bead hook allows for a more robust and impact-resistant rim construction. The straight sidewall design provides a larger surface area for the carbon layers, enhancing the rim's structural integrity and durability. This results in increased resistance to impacts and reduces the risk of rim damage, ensuring a longer lifespan for the wheelset.
Hookless bead rims are commonly used in tubeless setups, offering added advantages such as increased air volume and lower rolling resistance. The absence of a bead hook allows for a more airtight seal between the tire and rim, facilitating an efficient tubeless setup with enhanced puncture protection. The larger air volume achieved with hookless bead rims enables riders to run lower tire pressures, improving traction, comfort, and control on challenging terrains.
In conclusion, the hookless bead design in carbon rims presents a significant leap forward in wheel technology. With its weight reduction, improved impact resistance, and benefits for tubeless setups, hookless bead rims offer riders a performance advantage that enhances their overall riding experience.
DynamicEdge™ Bead Design
Introducing DynamicEdge™, our groundbreaking bead design that redefines performance and versatility in carbon rims.
Combining the advantages of hookless and hooked profiles, DynamicEdge™ features a precision-engineered mid-hook design that optimizes tire seating and ensures a secure fit.
With its innovative shape, DynamicEdge™ provides increased air volume, reduced rolling resistance, and enhanced stability, enabling riders to push the limits on any terrain.
Experience the power and control of DynamicEdge™ as you unleash your full potential on the trails. Elevate your riding experience with carbon rims equipped with the game-changing DynamicEdge™ bead design.
DynamicForce™ Reinforcement Technology
Unleashing Strength and Weight Optimization in Carbon Rims
Introducing DynamicForce™ Reinforcement Technology, our revolutionary advancement in carbon rim construction. With precision engineering and meticulous material distribution, DynamicForce™ strategically reinforces the most critical areas of our rims, achieving unmatched strength and weight optimization.
Through the integration of a pre-made carbon stripe with variable thickness, DynamicForce™ ensures targeted reinforcement precisely where it's needed most - the nipple hole areas. This innovative approach provides exceptional resistance to pulling forces while reducing weight in non-drilling sections, resulting in an ideal balance of strength and lightweight performance.
Our commitment to seamless integration and structural integrity is reflected in every aspect of DynamicForce™. This technology eliminates the need for additional reinforcement materials or complex assembly techniques, streamlining the manufacturing process while maintaining exceptional quality.
Experience the power of DynamicForce™ Reinforcement Technology and unlock the full potential of your ride. Elevate your cycling experience with carbon rims that combine strength, weight optimization, and uncompromising performance.
UniteFlex™ Lamination Technology
Elevating Carbon Rim Construction to New Heights
At the core of our carbon rim manufacturing lies our groundbreaking UniteFlex™ Lamination Technology. This advanced process combines cutting-edge machinery and meticulous attention to detail to achieve flawless lamination of the prepreg layers. Our specially designed lamination machine applies precise pressure, while the vacuuming process ensures the complete elimination of trapped air.
By eliminating bubbles and achieving a solid bond between each layer, our UniteFlex™ Lamination Technology creates carbon rims of unparalleled strength, durability, and performance. The precisely controlled pressure application and meticulous vacuuming process guarantee a consistent and reliable construction, meeting the highest quality standards.
With UniteFlex™ Lamination Technology, our carbon rims deliver exceptional performance and reliability on any terrain. Riders can confidently push their limits, knowing that their carbon rims are engineered to withstand the most demanding riding conditions. Experience the pinnacle of carbon rim construction with our UniteFlex™ Lamination Technology and embark on thrilling adventures with confidence and control.
Effortless Tubeless Integration Technology
Elevating Your Carbon Rim Experience
The tubeless system offers a range of advantages that revolutionize your riding experience. With enhanced puncture resistance and reduced risk of flats, you can conquer any terrain with confidence. Experience lower rolling resistance for increased speed and efficiency, while the ability to run lower tire pressures provides better traction and comfort. Say goodbye to pinch flats and enjoy improved durability.
Our carbon rims feature a specially engineered profile and tire bed design for seamless tubeless setups. The optimized shape ensures easy tire installation and a secure, airtight fit. Paired with high-quality tubeless valve stems and tapes, our system guarantees reliable performance and eliminates air leakage. To streamline the process, our efficient tape installation machine ensures precise application, saving you time and ensuring consistent performance. Elevate your riding with our carbon rims' tubeless system and unleash the full potential of your bike.
FusionFlex™ Bead Design
Redefining Rim Performance with Mini-Hook Innovation
Introducing FusionFlex™, our revolutionary bead design that seamlessly combines the best features of hookless and hooked bead technologies.
With its innovative Mini-Hook profile, FusionFlex™ offers the perfect balance of security and versatility for your carbon rims. The precise Mini-Hook design ensures a secure tire fit, preventing slippage and maximizing performance, while the streamlined shape reduces weight and enhances aerodynamics.
Experience the ultimate control and confidence on every ride with carbon rims featuring FusionFlex™. Elevate your cycling experience and unleash the full potential of your bike with the game-changing FusionFlex™ bead design.
RefinedFinish™
Elevate your carbon rim experience with RefinedFinish™, our innovative paintless technology that redefines the way rim finishes are achieved.
By embracing sustainability and cutting-edge practices, we have revolutionized the final coating process for our carbon rims.
Our paintless technology eliminates the need for traditional paint, offering a host of advantages that set us apart.
Firstly, it significantly reduces production lead times, ensuring prompt delivery of our high-quality carbon rims to riders worldwide. This means you can get on the road or trail faster and enjoy the performance benefits of our rims sooner.
But it's not just about efficiency. Our paintless technology delivers flawless rim finishes that are smooth, visually captivating, and free from imperfections. The absence of paint allows the natural beauty of the carbon fiber to shine through, creating a unique aesthetic that is both elegant and modern.
Beyond its remarkable visual appeal, our paintless technology embodies our commitment to environmental responsibility. By eliminating the use of paint and its associated chemicals, we minimize our ecological footprint and contribute to a more sustainable manufacturing process.
It's a win-win situation – exceptional rim finishes that are environmentally friendly. Choose RefinedFinish™ for carbon rims that exemplify craftsmanship, efficiency, and eco-consciousness.
Experience flawless rim finishes that reflect our dedication to excellence while contributing to a greener future. Ride with confidence, knowing that every aspect of our manufacturing process aligns with your passion for performance and sustainability.
SmoothSurface™
Elevate your carbon rim experience with SmoothSurface™, our cutting-edge automated sanding technology that delivers flawlessly smooth and visually captivating rim surfaces. At our carbon rim manufacturing facility, we leave no detail untouched, utilizing an advanced sanding machine engineered for precision and excellence.
Our state-of-the-art sanding machine ensures consistent and even sanding across the entire rim surface, resulting in a flawless finish that enhances the aesthetics of our carbon rims. But our commitment extends beyond beauty – we prioritize sustainability and worker safety.
Our sanding machine incorporates an integrated waste collection system, effectively capturing and containing any debris or dust produced during the sanding process. This environmentally conscious design minimizes any potential impact on the environment while safeguarding the health and well-being of our workers.
Experience the perfect marriage of aesthetics and sustainability with our carbon rims featuring SmoothSurface™ technology. Ride with confidence, knowing that every aspect of our manufacturing process is dedicated to delivering impeccable rim surfaces, exceptional performance, and a greener future.
Choose SmoothSurface™, where perfection meets responsibility, and discover the pinnacle of carbon rim craftsmanship.
Trilines™ Lay-Up and Interlace™ Finish
Prepare to be captivated by the extraordinary Trilines™ Lay-Up and Interlace™ Finish, a revolutionary combination that pushes the boundaries of carbon rim engineering to new heights.
With its distinct Trilines™ Lay-Up design and mesmerizing Interlace™ Finish, this cutting-edge technology demands attention and elevates your riding experience to unprecedented levels.
Trilines™ Lay-Up introduces a game-changing approach to carbon rim construction. Its intricate layout utilizes three precisely positioned prepreg lines that intersect like spokes, resulting in optimal weight reduction and exceptional strength.
By aligning these lines with the nipple hole, Trilines™ Lay-Up ensures seamless power transfer and balanced performance on every ride. But it doesn't stop there. The Interlace™ Finish is a visual masterpiece, meticulously crafted to create an interwoven pattern that exudes elegance and sophistication. This attention-grabbing finish sets your wheels apart from the crowd, leaving a lasting impression with its unique aesthetic appeal.
Experience the Trilines™ Lay-Up and Interlace™ Finish difference. Embrace the future of carbon rim technology and make a statement with your ride. Prepare to turn heads and ignite your passion for cycling like never before.
Trilines™ Lay-Up and Interlace™ Finish - where innovation meets visual allure.
Architectura™ Design
Introducing our new Architectura™ Design, a patented innovation that takes carbon rim technology to new heights. Inspired by the awe-inspiring architecture of ancient Chinese bridges, this design transcends traditional limits to deliver unmatched impact resistance and durability.
By strategically integrating pillars and arches into the rim structure, we have redefined how carbon rims perform under extreme conditions.
The innovative design effectively distributes and dissipates forces, mitigating the risk of damage and failure even in the harshest riding scenarios. Rigorous testing has demonstrated that carbon rims equipped with our Architectura™ Design offer over 30% greater impact resistance compared to rims of similar weight.
These exceptional carbon rims empower riders to conquer rugged terrains, tackle jumps, and navigate technical trails with unwavering confidence. Not only do they withstand the demands of off-road riding, but they also extend their lifespan, ensuring long-lasting performance and reliability.
Drawing upon ancient bridge engineering principles and leveraging state-of-the-art carbon fiber technology, our "Architectura™ Design" has set a new benchmark in the industry. Experience the unrivaled impact resistance and durability of our carbon rims, and elevate your riding experience to new heights. Embark on thrilling adventures knowing that your rims are built to withstand any challenge that comes your way.
Duraflex™ Carbon Pro
Elevate your cycling experience with our Duraflex™ Carbon Pro road disc brake rims, meticulously crafted using the synergy of high modulus carbon fiber and impact-resistant epoxy. This cutting-edge prepreg technology revolutionizes rim performance, delivering unrivaled strength, weight optimization, and durability.
At the core of our manufacturing process lies the extraordinary strength-to-weight ratio of high modulus carbon fiber. Engineered to maximize power transfer, our rims provide a responsive and agile ride, propelling you forward with effortless speed.
By harnessing the lightweight properties of high modulus carbon fiber, we ensure exceptional maneuverability without compromising structural integrity.
Complementing the carbon fiber, our impact-resistant epoxy resin adds an additional layer of durability and protection. Specifically formulated to withstand intense forces and absorb impacts, it guarantees unwavering performance on rough terrain and fast descents.
Our rims, fortified with impact-resistant epoxy, instill unwavering confidence as you push the boundaries of your riding capabilities.
With meticulous attention to detail, our advanced prepreg technology enables precise control over the rim's construction. This ensures optimal layup design, enhancing characteristics such as lateral stiffness and vertical compliance. The result is a robust and responsive rim that excels in demanding riding conditions, offering the ultimate balance of performance and reliability.
Experience the extraordinary performance and durability of our Duraflex™ Carbon Pro road disc brake rims. Unleash your potential, conquer any challenge, and enjoy a ride that transcends boundaries. Our relentless pursuit of excellence guarantees a wheelset that revolutionizes your cycling experience.
