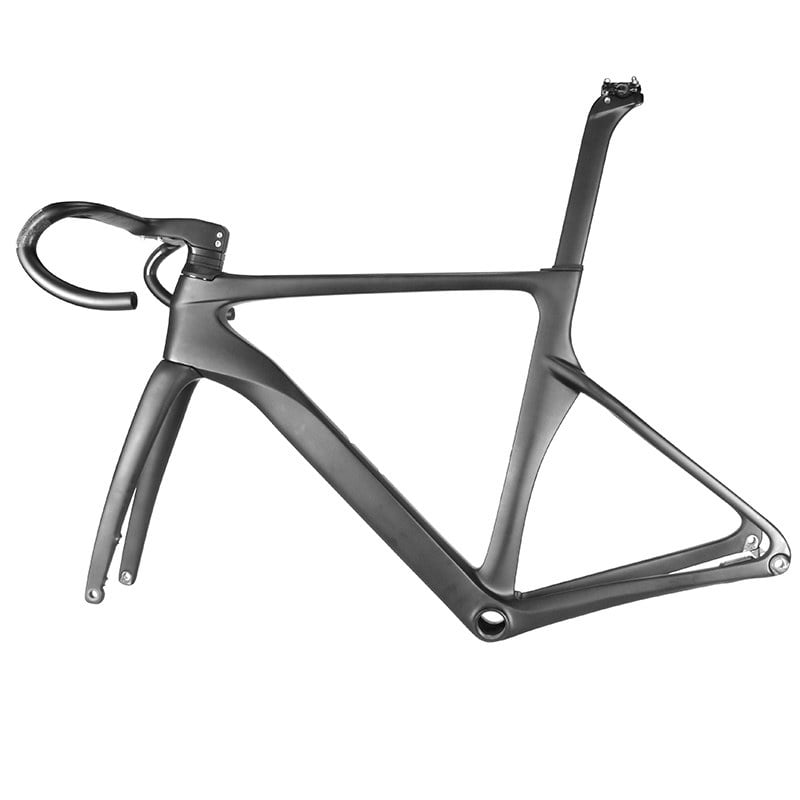

700C Carbon Aero Road DISC Brake Frameset
– Full internal cable routing
– Mechanical and Di2 groupset compatible
– High modulus carbon fiber
– Shimano flat mount 140mm disc rotor
– Dropout 12*100mm front&12*142mm rear
– Seatpost saddle rail round 7*7mm (default) and oval 7*9mm （optional）
| Components | Frame / fork / integrated handlebar/ seatpost /seatclamp / headset / spacers / skewers |
|---|---|
| Frame Size | 480/500/520/540/560/580mm |
| Weight | Frame 52cm: 1120+/-30g, fork 485+/-10g, SP: 235+/-10g, Handlebar: 400+/-10g ( 420*90mm) |
| Head Tube | 1 1/2" – 1 1/2" (upper 52mm lower 52mm, FSA standard) |
| Fork | Full internal cable routing, 43mm offset |
| Handlebar | Full internal cable routing,drop 125mm, reach 81mm with DI2 hole Width: 380/400/420/440mm (C-C) Stem: 90/100/110/120/130mm |
| Seat Post | Specific 350mm length, 16.5mm offset |
| Bottom Bracket | Pressfit BB86.5 |
| Max Chainring | 53-39T / 50-34T |
| Max Tire | 700*30C |
| Brake Type | Disc Brake |
| Rotor | Shimano Flat Mount 140mm or 160mm |
| Dropout O.L.D | Rear TA Φ12*142mm, Fork TA Φ12*100mm |
| Testing Standard | ISO4210 |
| Warranty | 2 Years |
* All units are in millimeters or degrees
| SIZE | CF | L | I | A | B | F | P | T | D | R | G | STACK | REACH | WB |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 480 | 460 | 515 | 134.7 | 75 | 72 | 570.9 | 408 | 100 | 70 | 43 | 368 | 502.8 | 380.8 | 968.3 |
| 500 | 480 | 535 | 143 | 74.5 | 73 | 577.6 | 408 | 110 | 70 | 43 | 368 | 515.5 | 392.3 | 975.1 |
| 520 | 500 | 550 | 150.3 | 74 | 73 | 588 | 408 | 120 | 70 | 43 | 368 | 528 | 399.7 | 985.6 |
| 540 | 520 | 565 | 158.2 | 73.5 | 73 | 597.9 | 408 | 130 | 70 | 43 | 368 | 534.6 | 406.8 | 995.6 |
| 560 | 540 | 580 | 166.9 | 73 | 73.5 | 603 | 408 | 140 | 70 | 43 | 368 | 545.8 | 413.1 | 1000.8 |
| 580 | 560 | 595 | 175.6 | 72.5 | 74 | 607.9 | 408 | 150 | 70 | 43 | 368 | 557 | 419.4 | 1005.7 |
