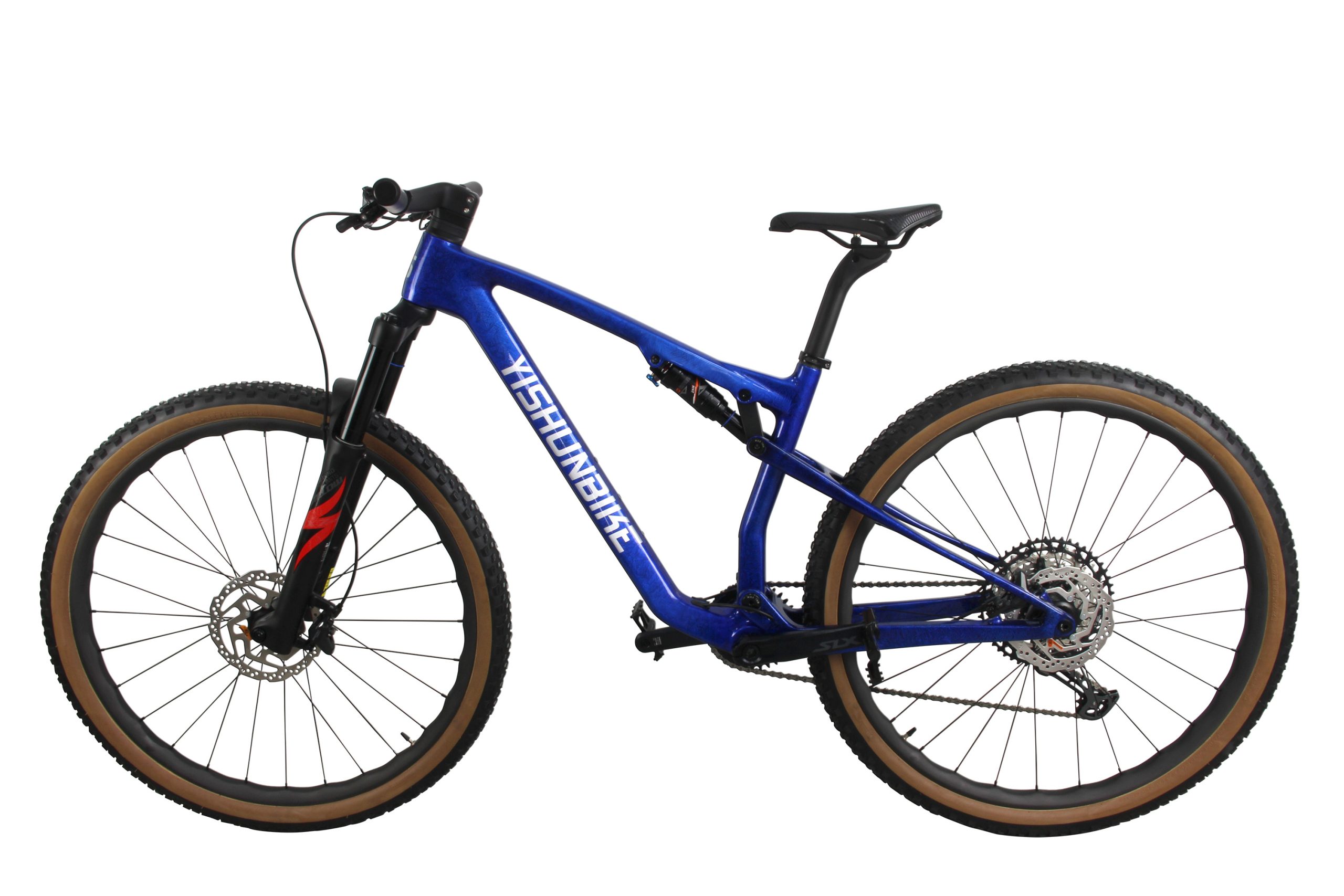

29ER XC Full Carbon Suspension Frame
– Full internal cable routing system
– Max chainring 36T
– Max tire 29er *2.6”
– UDH hanger
– Travel front 120mm, rear 100mm
| Components | Frame / seatclamp / headset / rear skewer |
| Routing System | Full internal |
| Frame Size | S/M/L/XL |
| Frame Weight | A: 1850+/-40g/ M / BB92（ MOQ 20 SETS） B: 2000±40g / M / BB92 |
| Head Tube | Tapered 1 1/2" – 1 1/2" (FSA standard) |
| Seat Tube | Φ31.6mm (clamp 34.9) Dropper seat post compatible |
| Rear Shock Size | Ø10*30L/190*40mm/Ø8*30L |
| Travel | Front 120mm, Rear 100mm |
| Bottom Bracket | BB92/BSA |
| Max Chainring | 36T |
| Max Tire | 29er *2.6" |
| Brake Type | Disc Brake (Rear brake cannot be compatible Magura calipers) |
| Rotor | Post Mount 160mm |
| Dropout O.L.D | TA Φ12*148mm |
| Rear derailleur hanger type | UDH |
| Max Rider Weight | 130kg |
| Testing Standard | ISO4210 |
| Warranty | 2 Years |
( Note: Default headset top cover fits for semi-internal&external cable routing stems or handlebars.)
